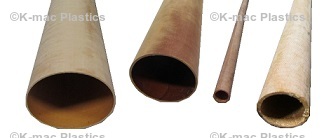

Canvas C Cotton Fabric Reinforced Phenolic Tubes .062 Inch Wall
Canvas C Cotton Fabric Reinforced
Phenolic - natural (light tan to brown)
This grade is composed of a continuous cotton woven cloth
impregnated with a phenolic resin binder. This grade contains a medium weave
canvas and is known primarily for it's mechanical properties. This grade is not
recommended for primary insulation.
NEMA grades C, Canvas Cotton-Cloth
Reinforced Phenolic -- natural color is typically light tan to brown. C grade
are composed of a continuous cotton woven cloth impregnated with a phenolic
resin binder. These grades contain a medium weave canvas and are known primarily
for their mechanical properties. These grades are not recommended for primary
electrical insulation. (Grade C certifies to Mil-I-13768/16 FBM, IEC 60893-3
Type 4, PF CC 201)
(Grade CE certifies to Mil-I-24768/14 FBG, IEC 60893-3 Type 4, PF CC 203)
Technical Data Chemical Resistance Chart
C Tubes CE Sheets CE Bar Stock
| Wall Thickness Options | |||
| .031" | .062" | .093" | .125" |
| .187" | .250" | .375" | .500" |
| .750" | 1.00" | ||
Tubes are manufactured in random lengths between 30" and 36".
The pricing and minimums are based on 36 in.
Tubes can also be produced in 42" to 48" random lengths for the same price.
Measured lengths of 36"±1" and 48"±1" are also available - call for pricing.
| .062" Wall Thickness - Canvas Tubes | |||||
| Part # | OD (in.) | ID (in.) | Minimum | Price Per Foot | Order Online |
|---|---|---|---|---|---|
| KM-2001 | .313 | .187 | 9 Feet | $6.15 | Add to Order |
| KM-2005 | .375 | .250 | 9 Feet | $7.15 | Add to Order |
| KM-2009 | .438 | .312 | 9 Feet | $9.00 | Add to Order |
| KM-2013 | .500 | .375 | 102 Feet | $7.57 | Add to Order |
| KM-2021 | .625 | .500 | 93 Feet | $15.93 | Add to Order |
| KM-2027 | .688 | .562 | 87 Feet | $16.73 | Add to Order |
| KM-2032 | .750 | .625 | 84 Feet | $17.50 | Add to Order |
| KM-2038 | .813 | .687 | 81 Feet | $18.30 | Add to Order |
| KM-2041 | .875 | .750 | 78 Feet | $19.63 | Add to Order |
| KM-18751 | .938 | .812 | 75 Feet | $20.43 | Add to Order |
| KM-2046 | 1.00 | .875 | 72 Feet | $21.25 | Add to Order |
| KM-18739 | 1.062 | .937 | 69 Feet | $22.05 | Add to Order |
| KM-2052 | 1.125 | 1.00 | 72 Feet | $22.85 | Add to Order |
| KM-18757 | 1.187 | 1.062 | 69 Feet | $23.65 | Add to Order |
| KM-18746 | 1.250 | 1.125 | 66 Feet | $24.47 | Add to Order |
| KM-18745 | 1.312 | 1.187 | 66 Feet | $25.28 | Add to Order |
| KM-2057 | 1.375 | 1.250 | 63 Feet | $26.10 | Add to Order |
| KM-18743 | 1.437 | 1.312 | 60 Feet | $26.90 | Add to Order |
| KM-18742 | 1.500 | 1.375 | 60 Feet | $27.70 | Add to Order |
| KM-18741 | 1.562 | 1.437 | 57 Feet | $28.53 | Add to Order |
| KM-2062 | 1.625 | 1.500 | 57 Feet | $29.33 | Add to Order |
| KM-18627 | 1.688 | 1.562 | 54 Feet | $30.13 | Add to Order |
| KM-18502 | 1.750 | 1.625 | 54 Feet | $30.95 | Add to Order |
| KM-18649 | 1.812 | 1.687 | 51 Feet | $31.75 | Add to Order |
| KM-2067 | 1.875 | 1.750 | 51 Feet | $32.57 | Add to Order |
| KM-18551 | 1.937 | 1.812 | 51 Feet | $33.38 | Add to Order |
| KM-18550 | 2.00 | 1.875 | 48 Feet | $34.18 | Add to Order |
| KM-18549 | 2.062 | 1.937 | 48 Feet | $34.98 | Add to Order |
| KM-2072 | 2.125 | 2.00 | 45 Feet | $35.80 | Add to Order |
| KM-18547 | 2.188 | 2.062 | 45 Feet | $36.60 | Add to Order |
| KM-18537 | 2.25 | 2.125 | 45 Feet | $37.43 | Add to Order |
| KM-18545 | 2.312 | 2.187 | 45 Feet | $38.22 | Add to Order |
| KM-2077 | 2.375 | 2.250 | 42 Feet | $39.03 | Add to Order |
| KM-18543 | 2.437 | 2.312 | 42 Feet | $39.85 | Add to Order |
| KM-18542 | 2.50 | 2.375 | 39 Feet | $40.65 | Add to Order |
| KM-18541 | 2.562 | 2.437 | 39 Feet | $41.45 | Add to Order |
| KM-2082 | 2.625 | 2.50 | 39 Feet | $42.28 | Add to Order |
| KM-18539 | 2.688 | 2.562 | 39 Feet | $43.08 | Add to Order |
| KM-18538 | 2.75 | 2.625 | 36 Feet | $43.90 | Add to Order |
| KM-18563 | 2.812 | 2.687 | 36 Feet | $44.70 | Add to Order |
| KM-2087 | 2.875 | 2.750 | 36 Feet | $45.50 | Add to Order |
| KM-18546 | 2.937 | 2.812 | 36 Feet | $46.30 | Add to Order |
| KM-18571 | 3.000 | 2.875 | 36 Feet | $47.13 | Add to Order |
| KM-18570 | 3.062 | 2.937 | 33 Feet | $47.93 | Add to Order |
| KM-2092 | 3.125 | 3.00 | 33 Feet | $48.75 | Add to Order |
| KM-18568 | 3.188 | 3.062 | 33 Feet | $49.55 | Add to Order |
| KM-18567 | 3.25 | 3.125 | 33 Feet | $50.38 | Add to Order |
| KM-18566 | 3.312 | 3.187 | 33 Feet | $51.18 | Add to Order |
| KM-2097 | 3.375 | 3.250 | 33 Feet | $51.97 | Add to Order |
| KM-18564 | 3.437 | 3.312 | 30 Feet | $52.78 | Add to Order |
| KM-18573 | 3.500 | 3.375 | 30 Feet | $53.60 | Add to Order |
| KM-18562 | 3.562 | 3.437 | 30 Feet | $54.40 | Add to Order |
| KM-2102 | 3.625 | 3.50 | 30 Feet | $55.23 | Add to Order |
| KM-18560 | 3.687 | 3.562 | 30 Feet | $56.03 | Add to Order |
| KM-18559 | 3.75 | 3.625 | 30 Feet | $56.83 | Add to Order |
| KM-18558 | 3.812 | 3.687 | 30 Feet | $57.63 | Add to Order |
| KM-2107 | 3.875 | 3.750 | 30 Feet | $58.45 | Add to Order |
| KM-18528 | 3.937 | 3.812 | 27 Feet | $59.25 | Add to Order |
| KM-18572 | 4.00 | 3.875 | 27 Feet | $60.08 | Add to Order |
| KM-18544 | 4.062 | 3.937 | 27 Feet | $60.88 | Add to Order |
| KM-2112 | 4.125 | 4.00 | 27 Feet | $61.70 | Add to Order |
| KM-18516 | 4.187 | 4.062 | 27 Feet | $62.50 | Add to Order |
| KM-18515 | 4.25 | 4.125 | 27 Feet | $63.30 | Add to Order |
| KM-18514 | 4.312 | 4.187 | 27 Feet | $64.10 | Add to Order |
| KM-18513 | 4.375 | 4.250 | 27 Feet | $64.93 | Add to Order |
| KM-18512 | 4.437 | 4.312 | 27 Feet | $65.73 | Add to Order |
| KM-18511 | 4.500 | 4.375 | 24 Feet | $66.55 | Add to Order |
| KM-18501 | 4.562 | 4.438 | 24 Feet | $67.35 | Add to Order |
| KM-2117 | 4.625 | 4.500 | 24 Feet | $68.15 | Add to Order |
| KM-18518 | 4.687 | 4.562 | 24 Feet | $68.95 | Add to Order |
| KM-18507 | 4.75 | 4.625 | 24 Feet | $69.78 | Add to Order |
| KM-18506 | 4.812 | 4.687 | 24 Feet | $70.58 | Add to Order |
| KM-18505 | 4.875 | 4.750 | 24 Feet | $71.40 | Add to Order |
| KM-18504 | 4.937 | 4.812 | 24 Feet | $72.20 | Add to Order |
| KM-18503 | 5.00 | 4.875 | 21 Feet | $79.83 | Add to Order |
| KM-18526 | 5.062 | 4.937 | 21 Feet | $80.70 | Add to Order |
| KM-2122 | 5.125 | 5.00 | 21 Feet | $81.60 | Add to Order |
| KM-18510 | 5.187 | 5.062 | 21 Feet | $82.48 | Add to Order |
| KM-18535 | 5.25 | 5.125 | 21 Feet | $83.35 | Add to Order |
| KM-18534 | 5.312 | 5.187 | 21 Feet | $84.23 | Add to Order |
| KM-18533 | 5.375 | 5.250 | 21 Feet | $85.13 | Add to Order |
| KM-18532 | 5.437 | 5.313 | 21 Feet | $86.00 | Add to Order |
| KM-18531 | 5.50 | 5.375 | 21 Feet | $86.90 | Add to Order |
| KM-18530 | 5.562 | 5.437 | 21 Feet | $87.78 | Add to Order |
| KM-2128 | 5.625 | 5.50 | 21 Feet | $88.68 | Add to Order |
| KM-18529 | 5.688 | 5.562 | 21 Feet | $89.55 | Add to Order |
| KM-18519 | 5.75 | 5.625 | 21 Feet | $90.43 | Add to Order |
| KM-18527 | 5.812 | 5.687 | 21 Feet | $91.30 | Add to Order |
| KM-18536 | 5.875 | 5.750 | 18 Feet | $92.20 | Add to Order |
| KM-18525 | 5.938 | 5.812 | 18 Feet | $93.07 | Add to Order |
| KM-18524 | 6.00 | 5.875 | 18 Feet | $93.98 | Add to Order |
| KM-18523 | 6.063 | 5.937 | 18 Feet | $94.85 | Add to Order |
| KM-2134 | 6.125 | 6.00 | 18 Feet | $95.75 | Add to Order |
| KM-18521 | 6.187 | 6.062 | 24 Feet | $78.25 | Add to Order |
| KM-18520 | 6.250 | 6.125 | 21 Feet | $79.05 | Add to Order |
| KM-18590 | 6.312 | 6.187 | 21 Feet | $79.85 | Add to Order |
| KM-18646 | 6.375 | 6.250 | 21 Feet | $80.65 | Add to Order |
| KM-18556 | 6.437 | 6.312 | 21 Feet | $81.45 | Add to Order |
| KM-18626 | 6.50 | 6.375 | 21 Feet | $82.25 | Add to Order |
| KM-18625 | 6.562 | 6.437 | 21 Feet | $83.03 | Add to Order |
| KM-18624 | 6.625 | 6.500 | 21 Feet | $83.85 | Add to Order |
| KM-18623 | 6.688 | 6.562 | 21 Feet | $84.63 | Add to Order |
| KM-18622 | 6.750 | 6.625 | 21 Feet | $85.43 | Add to Order |
| KM-18611 | 6.812 | 6.687 | 21 Feet | $86.23 | Add to Order |
| KM-18619 | 6.875 | 6.750 | 21 Feet | $87.03 | Add to Order |
| KM-18628 | 6.938 | 6.812 | 21 Feet | $87.83 | Add to Order |
| KM-18617 | 7.00 | 6.875 | 21 Feet | $88.63 | Add to Order |
| KM-18616 | 7.062 | 6.938 | 21 Feet | $89.43 | Add to Order |
| KM-18615 | 7.125 | 7.000 | 21 Feet | $90.23 | Add to Order |
| KM-18614 | 7.187 | 7.062 | 21 Feet | $91.02 | Add to Order |
| KM-18613 | 7.250 | 7.125 | 21 Feet | $91.82 | Add to Order |
| KM-18612 | 7.312 | 7.187 | 18 Feet | $92.63 | Add to Order |
| KM-18637 | 7.375 | 7.250 | 18 Feet | $93.43 | Add to Order |
| KM-18639 | 7.437 | 7.312 | 18 Feet | $94.23 | Add to Order |
| KM-18620 | 7.50 | 7.375 | 18 Feet | $95.02 | Add to Order |
| KM-18645 | 7.562 | 7.437 | 18 Feet | $95.80 | Add to Order |
| KM-18644 | 7.625 | 7.500 | 18 Feet | $96.63 | Add to Order |
| KM-18643 | 7.688 | 7.562 | 18 Feet | $97.40 | Add to Order |
| KM-18642 | 7.750 | 7.625 | 18 Feet | $98.23 | Add to Order |
| KM-18641 | 7.812 | 7.687 | 18 Feet | $99.00 | Add to Order |
| KM-18640 | 7.875 | 7.750 | 18 Feet | $99.80 | Add to Order |
| KM-18629 | 7.938 | 7.812 | 18 Feet | $100.60 | Add to Order |
| KM-18638 | 8.000 | 7.875 | 18 Feet | $101.40 | Add to Order |
| KM-18647 | 8.062 | 7.937 | 18 Feet | $102.20 | Add to Order |
| KM-18636 | 8.125 | 8.000 | 18 Feet | $103.00 | Add to Order |
| KM-18634 | 8.250 | 8.125 | 18 Feet | $104.60 | Add to Order |
| KM-18633 | 8.312 | 8.187 | 18 Feet | $105.40 | Add to Order |
| KM-18632 | 8.375 | 8.250 | 18 Feet | $106.20 | Add to Order |
| KM-18631 | 8.437 | 8.312 | 18 Feet | $107.00 | Add to Order |
| KM-18630 | 8.500 | 8.375 | 18 Feet | $107.80 | Add to Order |
| KM-18609 | 8.562 | 8.437 | 18 Feet | $108.58 | Add to Order |
| KM-18581 | 8.625 | 8.500 | 18 Feet | $109.40 | Add to Order |
| Rev. 03-24, 05-23, 04-23, 08-22 | |||||
| Phenolic Tube Tolerances | ||||
| ↓ Inside Diameter ↓ | ||||
| Outside Diameter | Turned OD Tolerance |
Steel Mandrel |
Built-up Mandrel |
|
| 0.125" to 0.749" | ±.005" | ±.003" | - | |
| 0.750" to 1.999" | ±.005" | ±.004" | - | |
| 2.000" to 4.000" | ±.008" | ±.006" | - | |
| 4.001" - 12.000" | ±.025" ** | ±.010" | - | |
| 12.001" - 18.000" | ±.030" ** | ±.030" | ±.060" | |
| 18.001" - 24.000" | ±.035" ** | ±.040" | ±.075" | |
| 24.001" - 48.000" | ±.040" ** | ±.060" | ±.090" | |
|
** Tubes over 8.000" OD are supplied as wound, which
** Tubes turned to the following OD tolerance
|
||||
