Canvas CE Fabric Reinforced Phenolic Rods
Canvas CE Fabric Reinforced Phenolic
- natural (light tan to brown)
This grade is composed of a continuous cotton woven cloth
impregnated with a phenolic resin binder. This grade contains a medium weave
canvas and is known primarily for it's mechanical properties. This grade is not
recommended for primary insulation.
NEMA grades C, and CE Canvas
Cotton-Cloth Reinforced Phenolic -- natural color is typically light tan to
brown. C and CE grades are composed of a continuous cotton woven cloth
impregnated with a phenolic resin binder. These grades contain a medium weave
canvas and are known primarily for their mechanical properties. These grades are
not recommended for primary electrical insulation. (Grade C certifies to
Mil-I-13768/16 FBM, IEC 60893-3 Type 4, PF CC 201)
(Grade CE certifies to Mil-I-24768/14 FBG, IEC 60893-3 Type 4, PF CC 203)
Chemical Resistance Chart Technical Data Sheet
| CE Cotton Fabric Reinforced Rods | |||
| Part # | Diameter (in.) | Price Per Foot | Order Online |
|---|---|---|---|
| KR-1312B | .125" | $1.35 | * |
| KR-1312 | .187" | $1.73 | Add to Order |
| KR-1313 | .250" | $1.92 | Add to Order |
| KR-1314 | .312" | $4.36 | Add to Order |
| KR-1315 | .375" | $4.84 | Add to Order |
| KR-1312C | .437 | $5.44 | * |
| KR-1316 | .500" | $5.58 | Add to Order |
| KR-1317 | .562" | $7.16 | Add to Order |
| KR-1318 | .625" | $8.78 | Add to Order |
| KR-1319 | .750" | $10.92 | Add to Order |
| KR-1320 | .875" | $13.96 | Add to Order |
| KR-1321 | 1.000" | $16.85 | Add to Order |
| KR-1322 | 1.125" | $18.10 | Add to Order |
| KR-1323 | 1.250" | $22.41 | Add to Order |
| KR-1324 | 1.375" | $21.24 | Add to Order |
| KR-1325 | 1.500" | $25.04 | Add to Order |
| KR-1326 | 1.625" | $31.82 | Add to Order |
| KR-1327 | 1.750" | $38.81 | Add to Order |
| KR-1328 | 2.000" | $47.90 | Add to Order |
| KR-1329 | 2.250" | $68.42 | Add to Order |
| KR-1330 | 2.500" | $82.72 | Add to Order |
| KR-1331 | 2.750" | $101.70 | Add to Order |
| KR-1332 | 3.000" | $107.44 | Add to Order |

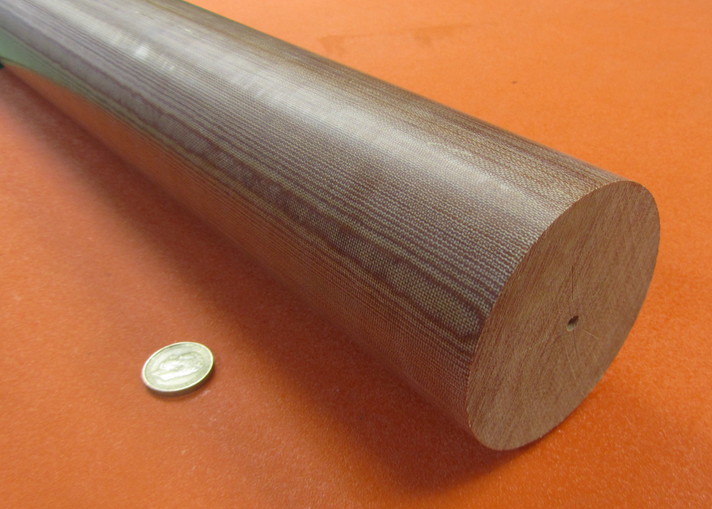

| KR-1333 | 3.250" | $136.76 | Add to Order |

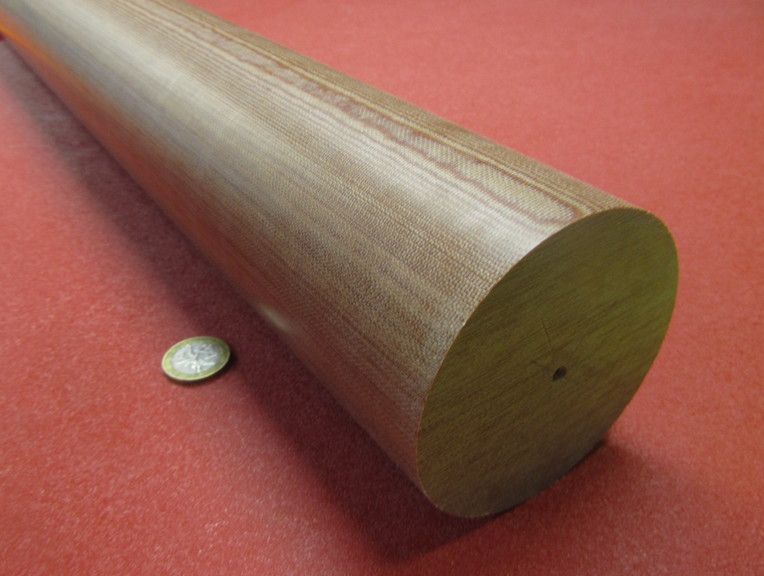

| KR-1334 | 3.500" | $140.32 | Add to Order |
| KR-1335 | 3.750" | $176.09 | Add to Order |
| KR-1336 | 4.000" | $183.16 | Add to Order |
| KR-1337 | 4.500" | $213.72 | Add to Order |
| KR-1338 | 5.000" | $288.92 | Add to Order |
| KR-1339 | 6.000" | $346.74 | Add to Order |
| Tolerances | |||
| Under 1.375" Dia. | ±.001" | ||
| 1.375" Dia. & Over | ±.003" | ||
| Rev. 04-23, 03-23, 04-22, 06-21 | |||
