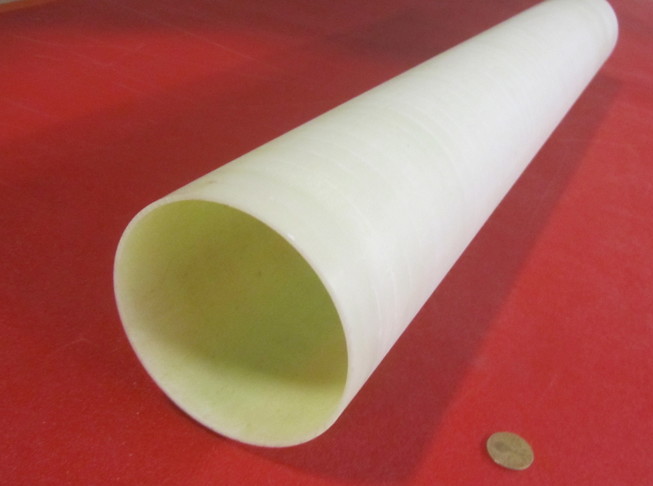

G11 Tubes High Temp. Glass Reinforced Epoxy - .125" Wall Thickness
G11 Tubes Glass Reinforced Epoxy -
(yellow green to amber)
This grade is similar to G10/FR4, with the addition of a
higher operating temperature and some improved mechanical strength at elevated
temperatures.
The main difference between NEMA Grades
G11 and FR5 is that FR5 is a fire retardant grade of G11. Therefore, FR5 can be
safely substituted when G11 is called for, while G11 can never be substituted
where FR5 is called for. (NEMA G-11 certs to
MIL-I-24768/3 GEB, IEC 60893-3 Type 2 EP GC 203; FR5 certifies to Mil-I-24768/28
GEB-F.)
Technical Data
Chemical Resistance Chart
| .031" (1/32") Wall | .062" (1/16") Wall | .093" (3/32") Wall | .125" (1/8") Wall | .187" (3/16") Wall |
| .250" (1/4") Wall | .375" (3/8") Wall | .500" (1/2") Wall | .750" (3/4")Wall | 1.00" Wall (Max. Possible) |
Tubes are manufactured in random lengths between 30" and 36".
The pricing and minimums are based on 36 in.
Tubes can also be produced in 42" to 48" random lengths for the same price.
Measured lengths of 36"±1" and 48"±1" are also available - call for pricing.
| .125" Wall Thickness G11 Tubes | |||||
| Part # | OD (in.) | ID (in.) | Price Per Foot | Minimum | Order Online |
|---|---|---|---|---|---|
| KM-1482 | 0.437 | 0.187 | $35.43 | 30 Feet | Add to Order |
| KM-1486 | 0.500 | 0.250 | $38.50 | 27 Feet | Add to Order |
| KM-1490 | 0.562 | 0.312 | $41.57 | 27 Feet | Add to Order |
| KM-1494 | 0.625 | 0.375 | $44.65 | 24 Feet | Add to Order |
| KM-1498 | 0.687 | 0.437 | $47.73 | 21 Feet | Add to Order |
| KM-1502 | 0.750 | 0.500 | $50.80 | 21 Feet | Add to Order |
| KM-1507 | 0.812 | 0.562 | $53.88 | 21 Feet | Add to Order |
| KM-1513 | 0.875 | 0.625 | $39.13 | 27 Feet | Add to Order |
| KM-1518 | 0.937 | 0.687 | $41.22 | 27 Feet | Add to Order |
| KM-10199 | 1.000 | 0.750 | $36.25 | 30 Feet | Add to Order |
| KM-10221 | 1.062 | 0.812 | $45.45 | 24 Feet | Add to Order |
| KM-1518K | 1.125 | 0.875 | $47.58 | 24 Feet | Add to Order |
| KM-10206 | 1.187 | 0.937 | $49.68 | 21 Feet | Add to Order |
| KM-1524 | 1.250 | 1.000 | $51.80 | 21 Feet | Add to Order |
| KM-10227 | 1.312 | 1.062 | $53.90 | 21 Feet | Add to Order |
| KM-9990 | 1.375 | 1.125 | $56.03 | 18 Feet | Add to Order |
| KM-10226 | 1.437 | 1.187 | $58.13 | 18 Feet | Add to Order |
| KM-1528 | 1.500 | 1.250 | $60.25 | 18 Feet | Add to Order |
| KM-10224 | 1.562 | 1.312 | $62.35 | 18 Feet | Add to Order |
| KM-10214 | 1.625 | 1.375 | $64.48 | 18 Feet | Add to Order |
| KM-10222 | 1.687 | 1.437 | $66.58 | 18 Feet | Add to Order |
| KM-1533 | 1.750 | 1.500 | $68.70 | 15 Feet | Add to Order |
| KM-10000 | 1.812 | 1.562 | $70.80 | 15 Feet | Add to Order |
| KM-9989 | 1.875 | 1.625 | $72.93 | 15 Feet | Add to Order |
| KM-9998 | 1.937 | 1.687 | $75.03 | 15 Feet | Add to Order |
| KM-1538 | 2.000 | 1.750 | $77.15 | 15 Feet | Add to Order |
| KM-9996 | 2.062 | 1.812 | $79.25 | 15 Feet | Add to Order |
| KM-9995 | 2.125 | 1.875 | $81.38 | 15 Feet | Add to Order |
| KM-9994 | 2.187 | 1.937 | $83.48 | 12 Feet | Add to Order |
| KM-1543 | 2.250 | 2.000 | $85.60 | 12 Feet | Add to Order |
| KM-9992 | 2.312 | 2.062 | $87.70 | 12 Feet | Add to Order |
| KM-9991 | 2.375 | 2.125 | $89.83 | 12 Feet | Add to Order |
| KM-10219 | 2.437 | 2.187 | $91.93 | 12 Feet | Add to Order |
| KM-1548 | 2.500 | 2.250 | $94.08 | 12 Feet | Add to Order |
| KM-9999 | 2.562 | 2.312 | $96.15 | 12 Feet | Add to Order |
| KM-10218 | 2.625 | 2.375 | $98.30 | 12 Feet | Add to Order |
| KM-10217 | 2.687 | 2.437 | $100.40 | 12 Feet | Add to Order |
| KM-1553 | 2.750 | 2.500 | $102.52 | 12 Feet | Add to Order |
| KM-10113 | 2.812 | 2.562 | $104.63 | 12 Feet | Add to Order |
| KM-10262 | 2.875 | 2.625 | $106.75 | 12 Feet | Add to Order |
| KM-10149 | 2.937 | 2.687 | $108.85 | 12 Feet | Add to Order |
| KM-1558 | 3.000 | 2.750 | $110.98 | 12 Feet | Add to Order |
| KM-10046 | 3.062 | 2.812 | $113.07 | 9 Feet | Add to Order |
| KM-10045 | 3.125 | 2.875 | $115.20 | 9 Feet | Add to Order |
| KM-10044 | 3.187 | 2.937 | $117.30 | 9 Feet | Add to Order |
| KM-1562 | 3.250 | 3.000 | $119.43 | 9 Feet | Add to Order |
| KM-10042 | 3.312 | 3.062 | $121.53 | 9 Feet | Add to Order |
| KM-10033 | 3.375 | 3.125 | $123.65 | 9 Feet | Add to Order |
| KM-10508 | 3.437 | 3.187 | $125.75 | 9 Feet | Add to Order |
| KM-1567 | 3.500 | 3.250 | $127.88 | 9 Feet | Add to Order |
| KM-10611 | 3.562 | 3.312 | $129.98 | 9 Feet | Add to Order |
| KM-10048 | 3.625 | 3.375 | $132.10 | 9 Feet | Add to Order |
| KM-10038 | 3.687 | 3.437 | $134.20 | 9 Feet | Add to Order |
| KM-1572 | 3.750 | 3.500 | $136.33 | 9 Feet | Add to Order |
| KM-10036 | 3.812 | 3.562 | $138.42 | 9 Feet | Add to Order |
| KM-10035 | 3.875 | 3.625 | $140.55 | 9 Feet | Add to Order |
| KM-10034 | 3.937 | 3.687 | $142.65 | 9 Feet | Add to Order |
| KM-1577 | 4.000 | 3.750 | $144.80 | 9 Feet | Add to Order |
| KM-10058 | 4.062 | 3.812 | $146.88 | 9 Feet | Add to Order |
| KM-10041 | 4.125 | 3.875 | $149.03 | 9 Feet | Add to Order |
| KM-10063 | 4.187 | 3.937 | $151.10 | 9 Feet | Add to Order |
| KM-1582 | 4.250 | 4.000 | $153.25 | 9 Feet | Add to Order |
| KM-10061 | 4.312 | 4.062 | $155.35 | 9 Feet | Add to Order |
| KM-10060 | 4.375 | 4.125 | $157.48 | 9 Feet | Add to Order |
| KM-10059 | 4.437 | 4.187 | $159.58 | 9 Feet | Add to Order |
| KM-10049 | 4.500 | 4.250 | $161.70 | 9 Feet | Add to Order |
| KM-10057 | 4.562 | 4.312 | $163.80 | 9 Feet | Add to Order |
| KM-10065 | 4.625 | 4.375 | $165.93 | 9 Feet | Add to Order |
| KM-10055 | 4.687 | 4.437 | $168.02 | 6 Feet | Add to Order |
| KM-1587 | 4.750 | 4.500 | $170.15 | 6 Feet | Add to Order |
| KM-10053 | 4.812 | 4.562 | $172.25 | 6 Feet | Add to Order |
| KM-10052 | 4.875 | 4.625 | $174.38 | 6 Feet | Add to Order |

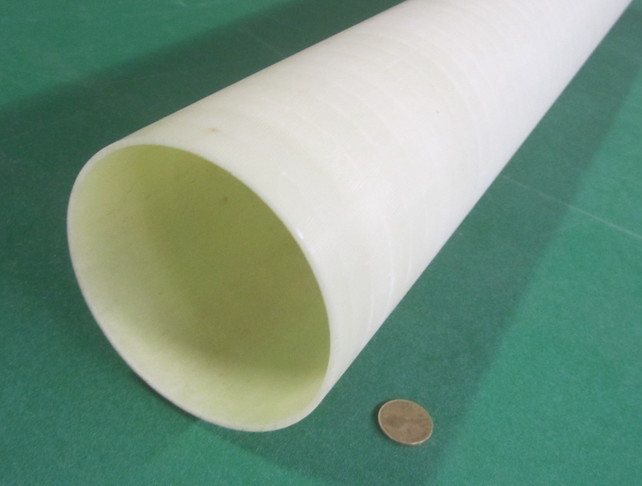

| KM-10051 | 4.937 | 4.687 | $176.48 | 6 Feet | Add to Order |
| KM-10025 | 5.000 | 4.750 | $178.60 | 6 Feet | Add to Order |
| KM-10064 | 5.062 | 4.812 | $180.70 | 6 Feet | Add to Order |

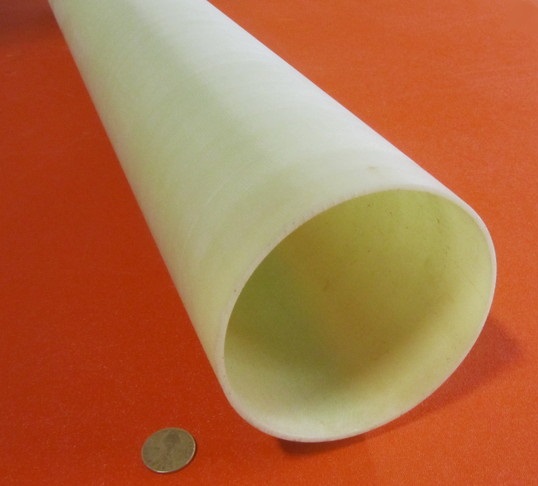

| KM-10039 | 5.125 | 4.875 | $200.75 | 6 Feet | Add to Order |
| KM-10015 | 5.187 | 4.937 | $203.05 | 6 Feet | Add to Order |
| KM-1592 | 5.250 | 5.000 | $205.40 | 6 Feet | Add to Order |
| KM-10013 | 5.312 | 5.062 | $207.70 | 6 Feet | Add to Order |
| KM-10012 | 5.375 | 5.125 | $210.05 | 6 Feet | Add to Order |
| KM-10011 | 5.437 | 5.187 | $212.35 | 6 Feet | Add to Order |
| KM-10010 | 5.500 | 5.250 | $214.68 | 6 Feet | Add to Order |
| KM-10001 | 5.562 | 5.312 | $216.98 | 6 Feet | Add to Order |
| KM-10008 | 5.625 | 5.375 | $219.33 | 6 Feet | Add to Order |
| KM-10016 | 5.687 | 5.437 | $221.63 | 6 Feet | Add to Order |
| KM-1598 | 5.750 | 5.500 | $223.98 | 6 Feet | Add to Order |
| KM-10005 | 5.812 | 5.562 | $226.28 | 6 Feet | Add to Order |
| KM-10004 | 5.875 | 5.625 | $228.60 | 6 Feet | Add to Order |
| KM-10003 | 5.937 | 5.687 | $230.90 | 6 Feet | Add to Order |
| KM-10023 | 6.000 | 5.750 | $233.25 | 6 Feet | Add to Order |
| KM-10009 | 6.125 | 5.875 | $237.90 | 6 Feet | Add to Order |
| KM-10031 | 6.187 | 5.937 | $240.20 | 6 Feet | Add to Order |
| KM-1604 | 6.250 | 6.000 | $242.53 | 6 Feet | Add to Order |
| KM-10029 | 6.312 | 6.062 | $227.83 | 6 Feet | Add to Order |
| KM-10028 | 6.375 | 6.125 | $230.15 | 6 Feet | Add to Order |
| KM-10027 | 6.437 | 6.187 | $232.45 | 6 Feet | Add to Order |
| KM-10026 | 6.500 | 6.250 | $234.75 | 6 Feet | Add to Order |
| KM-10017 | 6.562 | 6.312 | $237.05 | 6 Feet | Add to Order |
| KM-10024 | 6.625 | 6.375 | $239.35 | 6 Feet | Add to Order |
| KM-10032 | 6.687 | 6.437 | $241.65 | 6 Feet | Add to Order |
| KM-10022 | 6.750 | 6.500 | $243.98 | 6 Feet | Add to Order |
| KM-10021 | 6.812 | 6.562 | $246.25 | 6 Feet | Add to Order |
| KM-10020 | 6.875 | 6.625 | $248.58 | 6 Feet | Add to Order |
| KM-10019 | 6.937 | 6.687 | $250.85 | 6 Feet | Add to Order |
| KM-10018 | 7.000 | 6.750 | $253.17 | 6 Feet | Add to Order |
| KM-10080 | 7.062 | 6.812 | $255.45 | 6 Feet | Add to Order |
| KM-10130 | 7.125 | 6.875 | $257.78 | 6 Feet | Add to Order |
| KM-10050 | 7.187 | 6.937 | $260.05 | 6 Feet | Add to Order |
| KM-10112 | 7.250 | 7.000 | $262.38 | 6 Feet | Add to Order |
| KM-10111 | 7.312 | 7.062 | $264.65 | 6 Feet | Add to Order |
| KM-10110 | 7.375 | 7.125 | $266.98 | 6 Feet | Add to Order |
| KM-10109 | 7.437 | 7.187 | $269.28 | 6 Feet | Add to Order |
| KM-10108 | 7.500 | 7.250 | $271.58 | 6 Feet | Add to Order |
| KM-10099 | 7.562 | 7.312 | $273.88 | 6 Feet | Add to Order |
| KM-10106 | 7.625 | 7.375 | $276.18 | 6 Feet | Add to Order |
| KM-10114 | 7.687 | 7.437 | $278.48 | 6 Feet | Add to Order |
| KM-10104 | 7.750 | 7.500 | $280.80 | 6 Feet | Add to Order |
| KM-10103 | 7.812 | 7.562 | $283.08 | 6 Feet | Add to Order |
| KM-10102 | 7.875 | 7.625 | $285.40 | 6 Feet | Add to Order |
| KM-10101 | 7.937 | 7.687 | $287.67 | 6 Feet | Add to Order |
| KM-10100 | 8.000 | 7.750 | $290.00 | 6 Feet | Add to Order |
| KM-10122 | 8.062 | 7.812 | $292.28 | 6 Feet | Add to Order |
| KM-10124 | 8.125 | 7.875 | $294.60 | 6 Feet | Add to Order |
| KM-10107 | 8.187 | 7.937 | $296.88 | 6 Feet | Add to Order |
| KM-10129 | 8.250 | 8.000 | $299.20 | 6 Feet | Add to Order |
| KM-9968 | 8.375 | 8.125 | $303.80 | 6 Feet | Add to Order |
| KM-10127 | 8.437 | 8.187 | $306.10 | 6 Feet | Add to Order |
| KM-10126 | 8.500 | 8.250 | $308.40 | 6 Feet | Add to Order |
| KM-9892 | 8.562 | 8.312 | $310.70 | 6 Feet | Add to Order |
| KM-9891 | 8.625 | 8.375 | $313.00 | 6 Feet | Add to Order |
| KM-9890 | 8.687 | 8.437 | $315.30 | 6 Feet | Add to Order |
| KM-9889 | 8.750 | 8.500 | $317.63 | 6 Feet | Add to Order |
| KM-9888 | 8.812 | 8.562 | $319.90 | 6 Feet | Add to Order |
| KM-9641 | 8.875 | 8.625 | $322.22 | 6 Feet | Add to Order |
| KM-9887 | 8.937 | 8.687 | $324.50 | 6 Feet | Add to Order |
| KM-9781 | 9.000 | 8.750 | $326.83 | 6 Feet | Add to Order |
| KM-9780 | 9.062 | 8.812 | $329.10 | 6 Feet | Add to Order |
| KM-9779 | 9.125 | 8.875 | $331.42 | 6 Feet | Add to Order |
| KM-9778 | 9.187 | 8.937 | $333.70 | 3 Feet | Add to Order |
| KM-9777 | 9.250 | 9.000 | $336.03 | 3 Feet | Add to Order |
| KM-9776 | 9.312 | 9.062 | $338.30 | 3 Feet | Add to Order |
| KM-9775 | 9.375 | 9.125 | $340.63 | 3 Feet | Add to Order |
| KM-9773 | 9.500 | 9.250 | $345.23 | 3 Feet | Add to Order |
| KM-9774 | 9.437 | 9.187 | $342.92 | 3 Feet | Add to Order |
| KM-9760 | 9.562 | 9.312 | $347.53 | 3 Feet | Add to Order |
| KM-9771 | 9.625 | 9.375 | $349.83 | 3 Feet | Add to Order |
| KM-9783 | 9.687 | 9.437 | $352.13 | 3 Feet | Add to Order |
| KM-9769 | 9.750 | 9.500 | $354.45 | 3 Feet | Add to Order |
| KM-9768 | 9.812 | 9.562 | $356.73 | 3 Feet | Add to Order |
| KM-9767 | 9.875 | 9.625 | $359.05 | 3 Feet | Add to Order |
| KM-9766 | 9.937 | 9.687 | $361.33 | 3 Feet | Add to Order |
| KM-9765 | 10.000 | 9.750 | $363.65 | 3 Feet | Add to Order |
| KM-9764 | 10.062 | 9.812 | $365.93 | 3 Feet | Add to Order |
| KM-9763 | 10.125 | 9.875 | $368.25 | 3 Feet | Add to Order |
| KM-9762 | 10.187 | 9.937 | $370.53 | 3 Feet | Add to Order |
| KM-9794 | 10.250 | 10.000 | $372.85 | 3 Feet | Add to Order |
| KM-9770 | 10.312 | 10.062 | $375.13 | 3 Feet | Add to Order |
| KM-9772 | 10.375 | 10.125 | $377.45 | 3 Feet | Add to Order |
| KM-9806 | 10.437 | 10.187 | $379.72 | 3 Feet | Add to Order |
| KM-9805 | 10.500 | 10.250 | $382.05 | 3 Feet | Add to Order |
| KM-9804 | 10.562 | 10.312 | $384.35 | 3 Feet | Add to Order |
| KM-9803 | 10.625 | 10.375 | $386.65 | 3 Feet | Add to Order |
| KM-9802 | 10.687 | 10.437 | $388.95 | 3 Feet | Add to Order |
| KM-9801 | 10.750 | 10.500 | $391.28 | 3 Feet | Add to Order |
| KM-9800 | 10.812 | 10.562 | $393.55 | 3 Feet | Add to Order |
| KM-9799 | 10.875 | 10.625 | $395.88 | 3 Feet | Add to Order |
| KM-9798 | 10.937 | 10.687 | $398.15 | 3 Feet | Add to Order |
| KM-9797 | 11.000 | 10.750 | $400.48 | 3 Feet | Add to Order |
| KM-9784 | 11.062 | 10.812 | $402.75 | 3 Feet | Add to Order |
| KM-9795 | 11.125 | 10.875 | $405.08 | 3 Feet | Add to Order |
| KM-9807 | 11.187 | 10.937 | $407.35 | 3 Feet | Add to Order |
| KM-9793 | 11.250 | 11.000 | $409.68 | 3 Feet | Add to Order |
| KM-9792 | 11.312 | 11.062 | $411.95 | 3 Feet | Add to Order |
| KM-9791 | 11.375 | 11.125 | $414.28 | 3 Feet | Add to Order |
| KM-9790 | 11.437 | 11.187 | $416.55 | 3 Feet | Add to Order |
| KM-9789 | 11.500 | 11.250 | $418.88 | 3 Feet | Add to Order |
| KM-9788 | 11.562 | 11.312 | $421.18 | 3 Feet | Add to Order |
| KM-9787 | 11.625 | 11.375 | $423.47 | 3 Feet | Add to Order |
| KM-9785 | 11.750 | 11.500 | $428.10 | 3 Feet | Add to Order |
| KM-9748 | 11.812 | 11.562 | $430.38 | 3 Feet | Add to Order |
| KM-9713 | 11.875 | 11.625 | $432.70 | 3 Feet | Add to Order |
| KM-9761 | 11.937 | 11.687 | $434.98 | 3 Feet | Add to Order |
| KM-9733 | 12.000 | 11.750 | $437.30 | 3 Feet | Add to Order |
| KM-9732 | 12.062 | 11.812 | $439.58 | 3 Feet | Add to Order |
| KM-9731 | 12.125 | 11.875 | $441.90 | 3 Feet | Add to Order |
| KM-9730 | 12.187 | 11.937 | $444.17 | 3 Feet | Add to Order |
| KM-9729 | 12.250 | 12.000 | $446.50 | 3 Feet | Add to Order |
| KM-9728 | 12.312 | 12.062 | $448.78 | 3 Feet | Add to Order |
| KM-9727 | 12.375 | 12.125 | $451.10 | 3 Feet | Add to Order |
| KM-9726 | 12.437 | 12.187 | $453.38 | 3 Feet | Add to Order |
| KM-9725 | 12.500 | 12.250 | $455.70 | 3 Feet | Add to Order |
| KM-9712 | 12.562 | 12.312 | $458.00 | 3 Feet | Add to Order |
| KM-9723 | 12.625 | 12.375 | $460.30 | 3 Feet | Add to Order |
| KM-9735 | 12.687 | 12.437 | $462.60 | 3 Feet | Add to Order |
| KM-9716 | 12.750 | 12.500 | $464.93 | 3 Feet | Add to Order |
| KM-9715 | 12.812 | 12.562 | $467.20 | 3 Feet | Add to Order |
| KM-9714 | 12.875 | 12.625 | $469.53 | 3 Feet | Add to Order |
| KM-9746 | 12.937 | 12.687 | $471.80 | 3 Feet | Add to Order |
| KM-9722 | 13.000 | 12.750 | $474.13 | 3 Feet | Add to Order |
| KM-9724 | 13.062 | 12.812 | $476.40 | 3 Feet | Add to Order |
| KM-9758 | 13.125 | 12.875 | $478.73 | 3 Feet | Add to Order |
| KM-9757 | 13.187 | 12.937 | $481.00 | 3 Feet | Add to Order |
| KM-9756 | 13.250 | 13.000 | $483.33 | 3 Feet | Add to Order |
| KM-9755 | 13.312 | 13.062 | $485.60 | 3 Feet | Add to Order |
| KM-9754 | 13.375 | 13.125 | $487.92 | 3 Feet | Add to Order |
| KM-9753 | 13.437 | 13.187 | $490.20 | 3 Feet | Add to Order |
| KM-9752 | 13.500 | 13.250 | $492.53 | 3 Feet | Add to Order |
| KM-9751 | 13.562 | 13.312 | $494.83 | 3 Feet | Add to Order |
| KM-9750 | 13.625 | 13.375 | $497.13 | 3 Feet | Add to Order |
| KM-9749 | 13.687 | 13.437 | $499.43 | 3 Feet | Add to Order |
| KM-9736 | 13.750 | 13.500 | $501.75 | 3 Feet | Add to Order |
| KM-9747 | 13.812 | 13.562 | $504.03 | 3 Feet | Add to Order |
| KM-9759 | 13.875 | 13.625 | $506.35 | 3 Feet | Add to Order |
| KM-9745 | 13.937 | 13.687 | $508.63 | 3 Feet | Add to Order |
| KM-9744 | 14.000 | 13.750 | $510.95 | 3 Feet | Add to Order |
| KM-9743 | 14.062 | 13.812 | $513.23 | 3 Feet | Add to Order |
| KM-9742 | 14.125 | 13.875 | $515.55 | 3 Feet | Add to Order |
| KM-9741 | 14.187 | 13.937 | $517.83 | 3 Feet | Add to Order |
| KM-9740 | 14.250 | 14.000 | $520.15 | 3 Feet | Add to Order |
| KM-9739 | 14.312 | 14.062 | $522.43 | 3 Feet | Add to Order |
| KM-9738 | 14.375 | 14.125 | $524.75 | 3 Feet | Add to Order |
| KM-9830 | 14.437 | 14.187 | $527.03 | 3 Feet | Add to Order |
| KM-9734 | 14.500 | 14.250 | $529.35 | 3 Feet | Add to Order |
| KM-9796 | 14.562 | 14.312 | $531.65 | 3 Feet | Add to Order |
| KM-9886 | 14.625 | 14.375 | $533.95 | 3 Feet | Add to Order |
| KM-9875 | 14.687 | 14.437 | $536.25 | 3 Feet | Add to Order |
| KM-9884 | 14.750 | 14.500 | $538.58 | 3 Feet | Add to Order |
| KM-9893 | 14.812 | 14.562 | $540.85 | 3 Feet | Add to Order |
| KM-9882 | 14.875 | 14.625 | $543.18 | 3 Feet | Add to Order |
| KM-9881 | 14.937 | 14.687 | $545.45 | 3 Feet | Add to Order |
| KM-9880 | 15.000 | 14.750 | $547.78 | 3 Feet | Add to Order |
| KM-9879 | 15.062 | 14.812 | $550.05 | 3 Feet | Add to Order |
| KM-9878 | 15.125 | 14.875 | $552.38 | 3 Feet | Add to Order |
| KM-9877 | 15.187 | 14.937 | $554.65 | 3 Feet | Add to Order |
| KM-9902 | 15.250 | 15.000 | $556.98 | 3 Feet | Add to Order |
| KM-9883 | 15.312 | 15.062 | $559.25 | 3 Feet | Add to Order |
| KM-9885 | 15.375 | 15.125 | $561.58 | 3 Feet | Add to Order |
| KM-9438 | 15.437 | 15.187 | $563.85 | 3 Feet | Add to Order |
| KM-9911 | 15.500 | 15.250 | $566.18 | 3 Feet | Add to Order |
| KM-9910 | 15.562 | 15.312 | $568.47 | 3 Feet | Add to Order |
| KM-9909 | 15.625 | 15.375 | $570.78 | 3 Feet | Add to Order |
| KM-9908 | 15.687 | 15.437 | $573.07 | 3 Feet | Add to Order |
| KM-9907 | 15.750 | 15.500 | $575.40 | 3 Feet | Add to Order |
| KM-9906 | 15.812 | 15.562 | $577.68 | 3 Feet | Add to Order |
| KM-9905 | 15.875 | 15.625 | $580.00 | 3 Feet | Add to Order |
| KM-9894 | 15.937 | 15.687 | $582.28 | 3 Feet | Add to Order |
| KM-9903 | 16.000 | 15.750 | $584.60 | 3 Feet | Add to Order |
| KM-9912 | 16.062 | 15.812 | $586.88 | 3 Feet | Add to Order |
| KM-9901 | 16.125 | 15.875 | $589.20 | 3 Feet | Add to Order |
| KM-9900 | 16.187 | 15.937 | $591.48 | 3 Feet | Add to Order |
| KM-9899 | 16.250 | 16.000 | $593.80 | 3 Feet | Add to Order |
| KM-9898 | 16.312 | 16.062 | $596.08 | 3 Feet | Add to Order |
| KM-9897 | 16.375 | 16.125 | $598.40 | 3 Feet | Add to Order |
| KM-9896 | 16.437 | 16.187 | $600.68 | 3 Feet | Add to Order |
| KM-9873 | 16.500 | 16.250 | $603.00 | 3 Feet | Add to Order |
| KM-9904 | 16.562 | 16.312 | $605.30 | 3 Feet | Add to Order |
| KM-9876 | 16.625 | 16.375 | $607.60 | 3 Feet | Add to Order |
| KM-9854 | 16.687 | 16.437 | $609.90 | 3 Feet | Add to Order |
| KM-9853 | 16.750 | 16.500 | $612.20 | 3 Feet | Add to Order |
| KM-9852 | 16.812 | 16.562 | $614.50 | 3 Feet | Add to Order |
| KM-9851 | 16.875 | 16.625 | $616.82 | 3 Feet | Add to Order |
| KM-9850 | 16.937 | 16.687 | $619.10 | 3 Feet | Add to Order |
| KM-9849 | 17.000 | 16.750 | $621.43 | 3 Feet | Add to Order |
| KM-9848 | 17.062 | 16.812 | $623.70 | 3 Feet | Add to Order |
| KM-9838 | 17.125 | 16.875 | $626.03 | 3 Feet | Add to Order |
| KM-10944 | 17.187 | 16.937 | $628.30 | 3 Feet | Add to Order |
| KM-10943 | 17.250 | 17.000 | $630.63 | 3 Feet | Add to Order |
| KM-10942 | 17.312 | 17.062 | $632.90 | 3 Feet | Add to Order |
| KM-10941 | 17.375 | 17.125 | $635.23 | 3 Feet | Add to Order |
| KM-10930 | 17.500 | 17.250 | $639.83 | 3 Feet | Add to Order |
| KM-10938 | 17.562 | 17.312 | $642.13 | 3 Feet | Add to Order |
| KM-10946 | 17.625 | 17.375 | $644.43 | 3 Feet | Add to Order |
| KM-10936 | 17.687 | 17.437 | $646.73 | 3 Feet | Add to Order |
| KM-10935 | 17.750 | 17.500 | $649.03 | 3 Feet | Add to Order |
| KM-10933 | 17.875 | 17.625 | $653.65 | 3 Feet | Add to Order |
| KM-10932 | 17.937 | 17.687 | $655.93 | 3 Feet | Add to Order |
| KM-10931 | 18.000 | 17.750 | $658.25 | 3 Feet | Add to Order |
| KM-10905 | 18.062 | 17.812 | $660.53 | 3 Feet | Add to Order |
| KM-10880 | 18.125 | 17.875 | $662.85 | 3 Feet | Add to Order |
| KM-10914 | 18.187 | 17.937 | $665.13 | 3 Feet | Add to Order |
| KM-10893 | 18.250 | 18.000 | $667.45 | 3 Feet | Add to Order |
| KM-10892 | 18.312 | 18.062 | $669.72 | 3 Feet | Add to Order |
| KM-10891 | 18.375 | 18.125 | $672.05 | 3 Feet | Add to Order |
| KM-10890 | 18.437 | 18.187 | $674.33 | 3 Feet | Add to Order |
| KM-10889 | 18.500 | 18.250 | $676.65 | 3 Feet | Add to Order |
| KM-10879 | 18.562 | 18.312 | $678.95 | 3 Feet | Add to Order |
| KM-10887 | 18.625 | 18.375 | $681.25 | 3 Feet | Add to Order |
| KM-10895 | 18.687 | 18.437 | $683.55 | 3 Feet | Add to Order |
| KM-10885 | 18.750 | 18.500 | $685.85 | 3 Feet | Add to Order |
| KM-10884 | 18.812 | 18.562 | $688.15 | 3 Feet | Add to Order |
| KM-10883 | 18.875 | 18.625 | $690.48 | 3 Feet | Add to Order |
| KM-10882 | 18.937 | 18.687 | $692.75 | 3 Feet | Add to Order |
| KM-10881 | 19.000 | 18.750 | $695.07 | 3 Feet | Add to Order |
| KM-10903 | 19.062 | 18.812 | $697.35 | 3 Feet | Add to Order |
| KM-10886 | 19.125 | 18.875 | $699.68 | 3 Feet | Add to Order |
| KM-10888 | 19.187 | 18.937 | $701.95 | 3 Feet | Add to Order |
| KM-10911 | 19.250 | 19.000 | $704.28 | 3 Feet | Add to Order |
| KM-10910 | 19.312 | 19.062 | $706.55 | 3 Feet | Add to Order |
| KM-10909 | 19.375 | 19.125 | $708.88 | 3 Feet | Add to Order |
| KM-10908 | 19.437 | 19.187 | $711.15 | 3 Feet | Add to Order |
| KM-10907 | 19.500 | 19.250 | $713.47 | 3 Feet | Add to Order |
| KM-10906 | 19.562 | 19.312 | $715.78 | 3 Feet | Add to Order |
| KM-10896 | 19.625 | 19.375 | $718.08 | 3 Feet | Add to Order |
| KM-10904 | 19.687 | 19.437 | $720.38 | 3 Feet | Add to Order |
| KM-10912 | 19.750 | 19.500 | $722.68 | 3 Feet | Add to Order |
| KM-10902 | 19.812 | 19.562 | $724.98 | 3 Feet | Add to Order |
| KM-10901 | 19.875 | 19.625 | $727.30 | 3 Feet | Add to Order |
| KM-10900 | 19.937 | 19.687 | $729.57 | 3 Feet | Add to Order |
| KM-10899 | 20.000 | 19.750 | $731.90 | 3 Feet | Add to Order |
| Rev. 08-22, 06-22, 04-22, 11-21 | |||||
| Phenolic Tube Tolerances | ||||
| ↓ Inside Diameter ↓ | ||||
| Outside Diameter | Turned OD Tolerance |
Steel Mandrel |
Built-up Mandrel |
|
| 0.125" to 0.749" | ±.005" | ±.003" | - | |
| 0.750" to 1.999" | ±.005" | ±.004" | - | |
| 2.000" to 4.000" | ±.008" | ±.006" | - | |
| 4.001" - 12.000" | ±.025" ** | ±.010" | - | |
| 12.001" - 18.000" | ±.030" ** | ±.030" | ±.060" | |
| 18.001" - 24.000" | ±.035" ** | ±.040" | ±.075" | |
| 24.001" - 48.000" | ±.040" ** | ±.060" | ±.090" | |
|
** Tubes over 8.000" OD are supplied as wound, which
** Tubes turned to the following OD tolerance
|
||||
