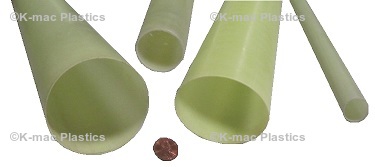

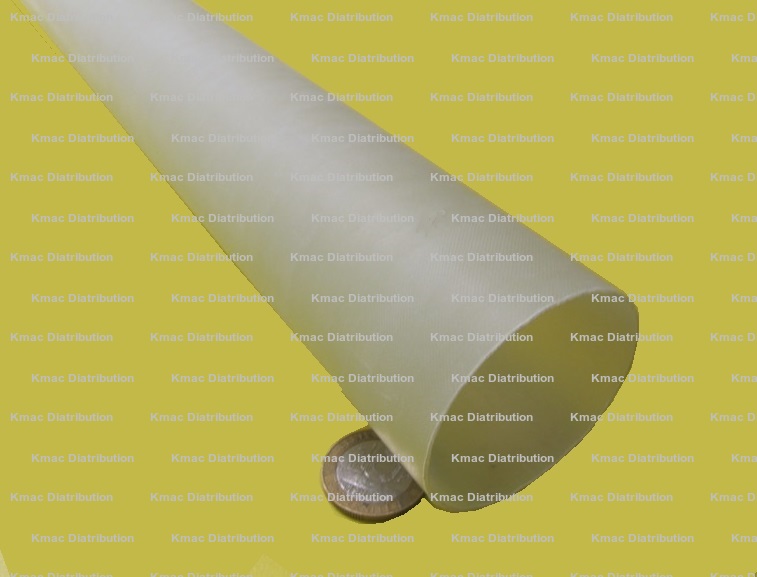

G10 Tubes Glass Reinforced Epoxy - .031" Wall
(Micarta) (High Pressure Laminates)
G10Glass Reinforced Epoxy - natural
(yellowish to light green) Technical Data
Chemical Resistance Chart
The most versatile all-around laminate and
composite, this grade is a continuous glass woven fabric base impregnated
with an epoxy resin binder. It has extremely high mechanical strength, good
dielectric loss properties, and good electric strength properties, both wet and
dry.
NEMA G-10 MIL-I-24768/2 GEE, IPC
4101/20, IEC 60893-3 Type 2 EP GC 201
Grade NEMA FR-4 certs to MIL-I-24768/27 GEE-F, IPC 4101/21, IEC 60893-3 Type 2
EP GC 202
| .031" (1/32") Wall | .062" (1/16") Wall | .093" (3/32") Wall | .125" (1/8") Wall | .187" (3/16") Wall |
| .250" (1/4") Wall | .375" (3/8") Wall | .500" (1/2") Wall | .750" (3/4") Wall | 1.00" Wall (Max. Possible) |
Tubes are manufactured in random lengths between 30" and 36".
The pricing and minimums are based on 36 in.
Tubes can also be produced in 42" to 48" random lengths for the same price.
Measured lengths of 36"±1" and 48"±1" are also available - call for pricing.

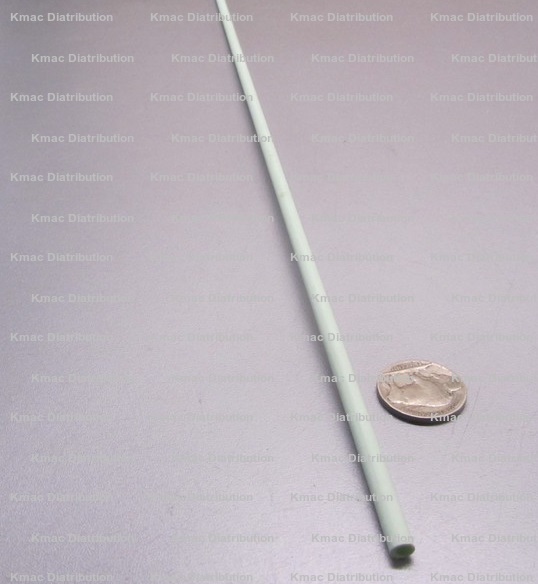

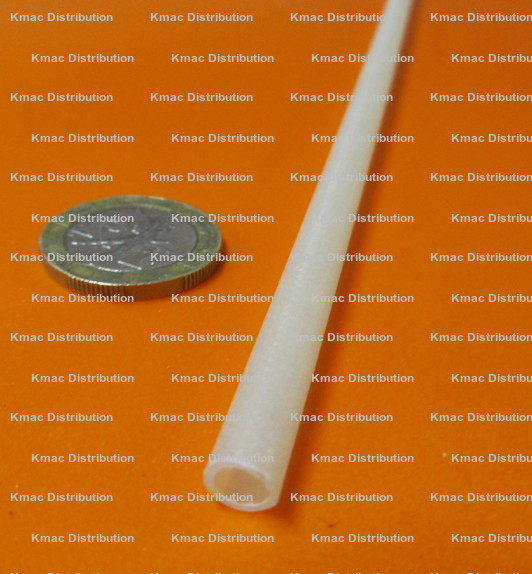

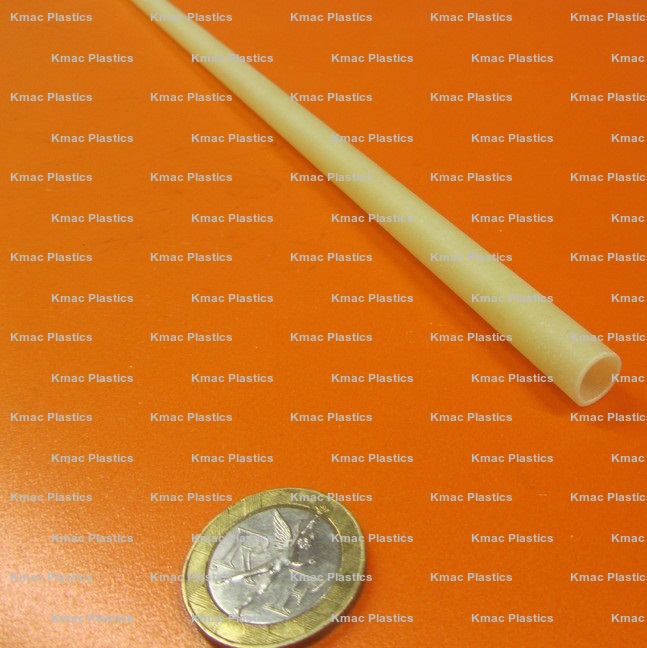

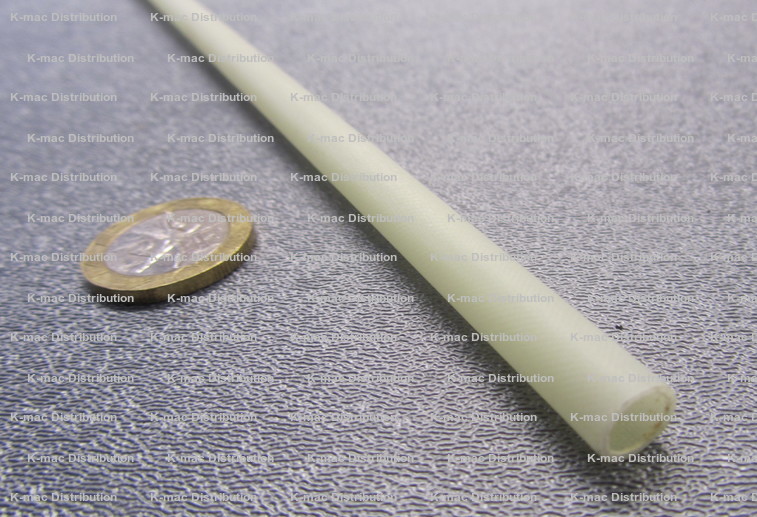

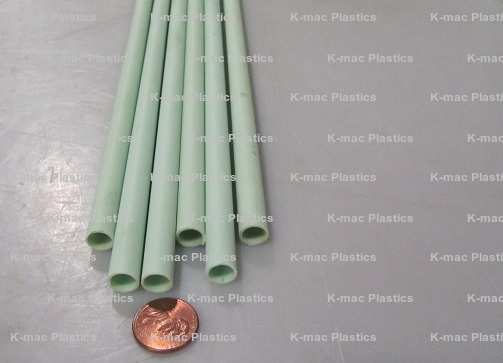

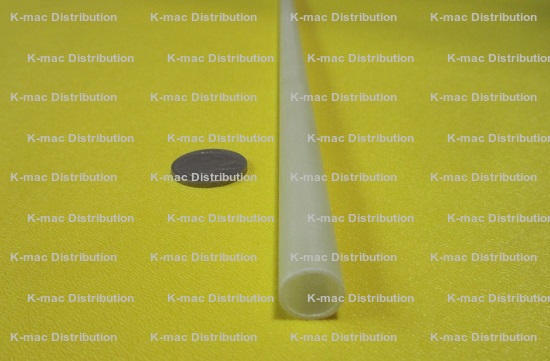

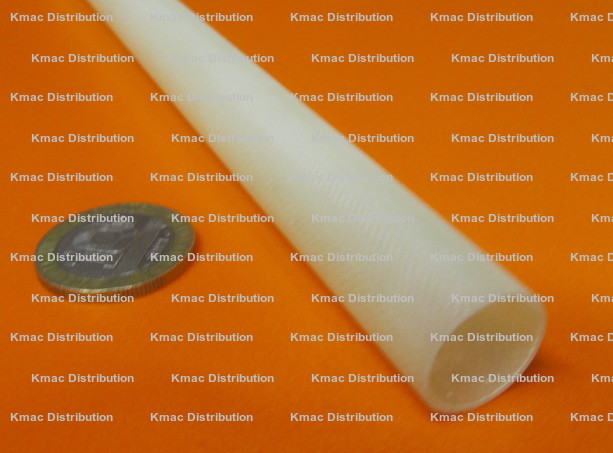

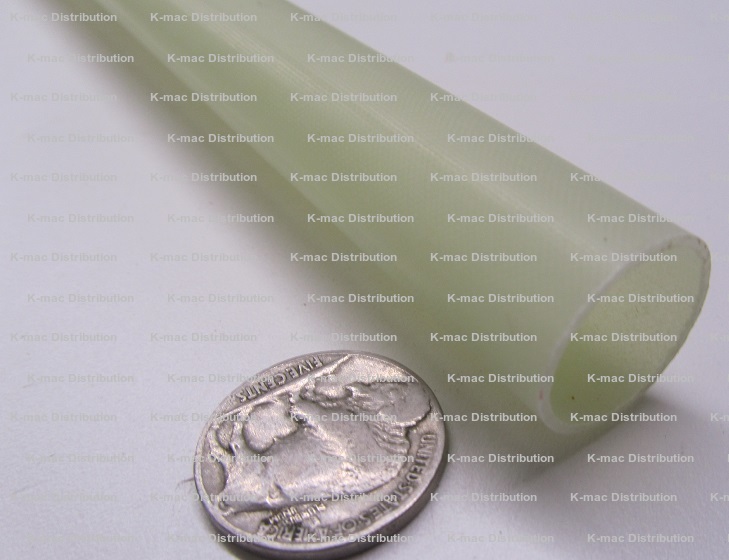

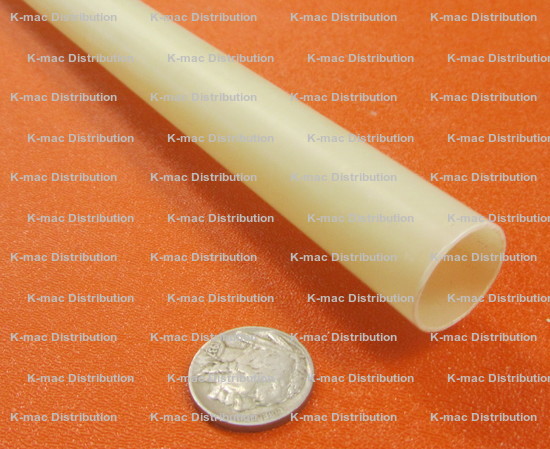

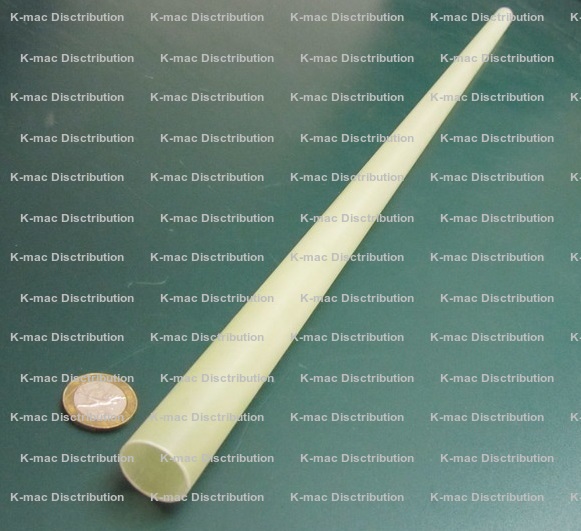

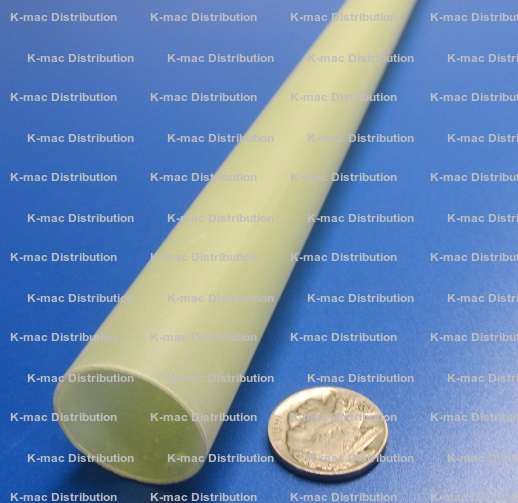

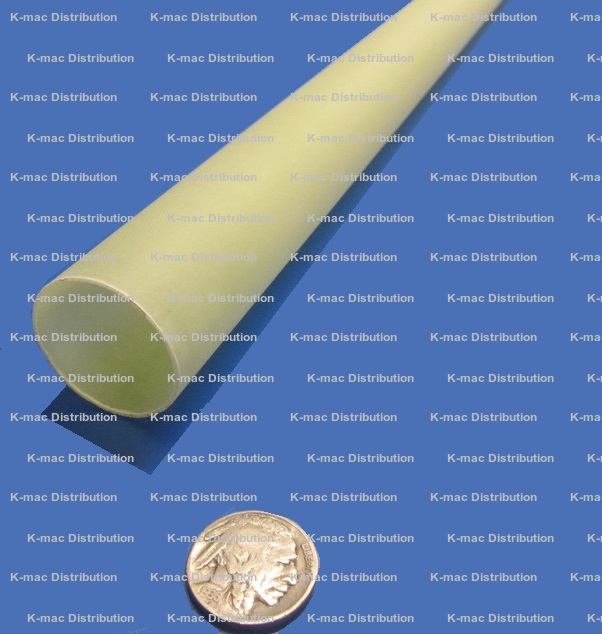

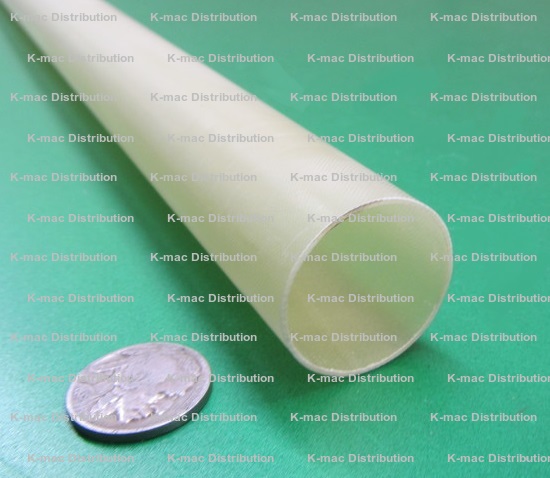

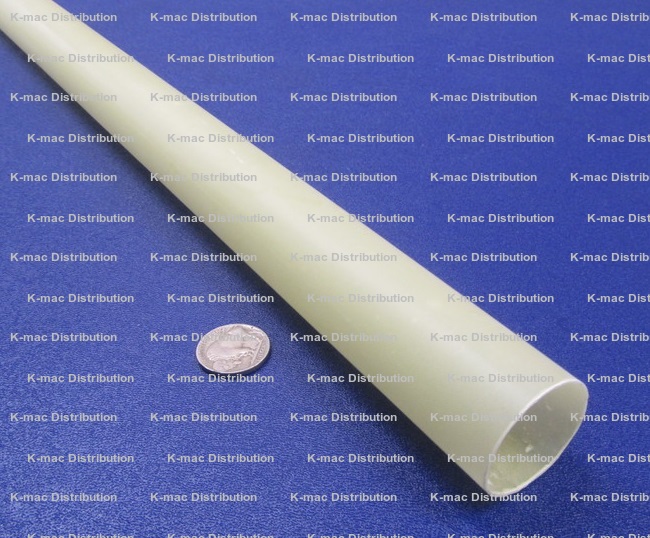

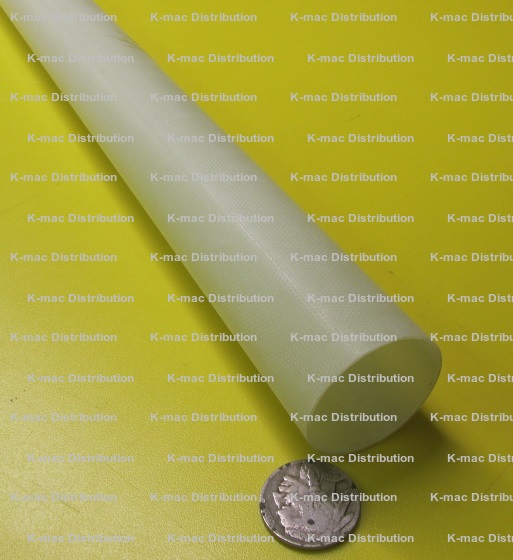

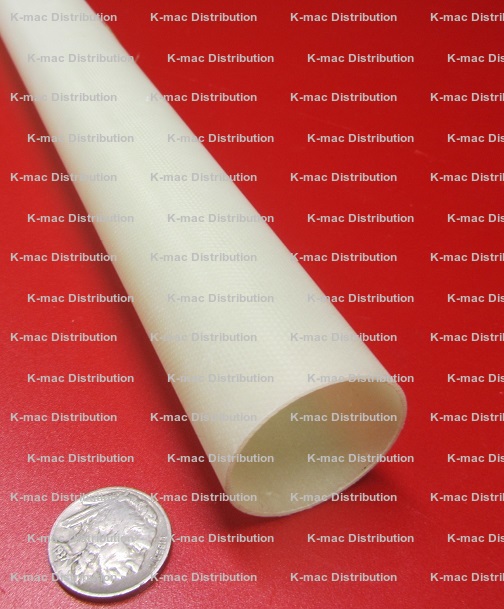

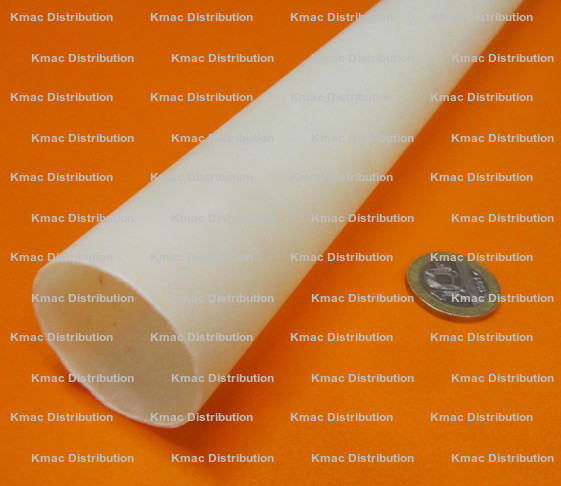

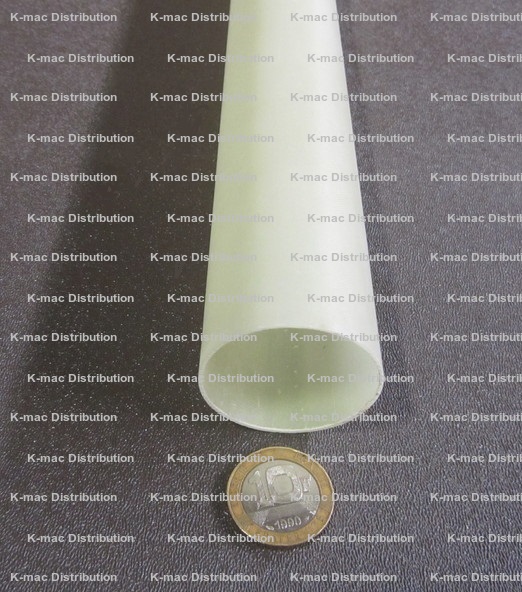

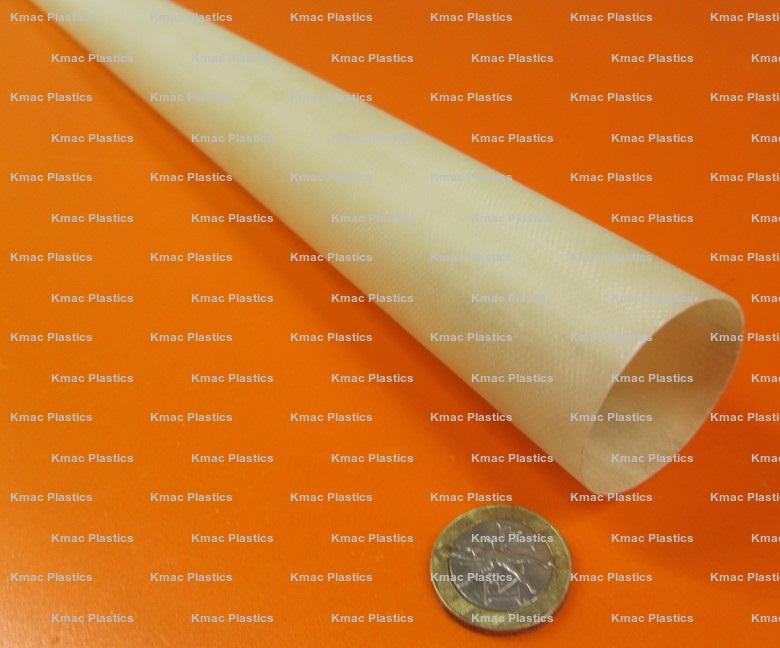

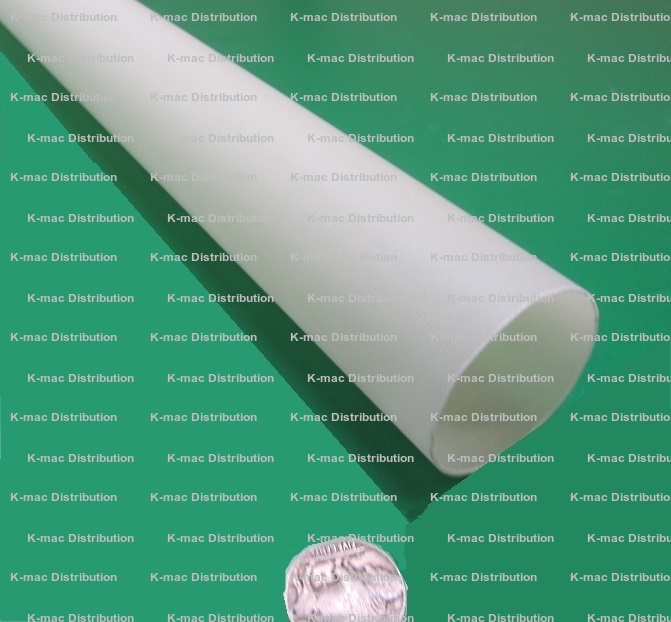

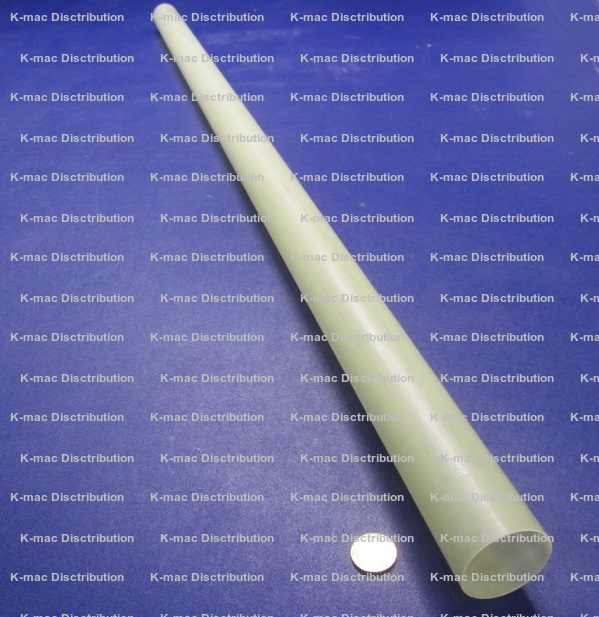

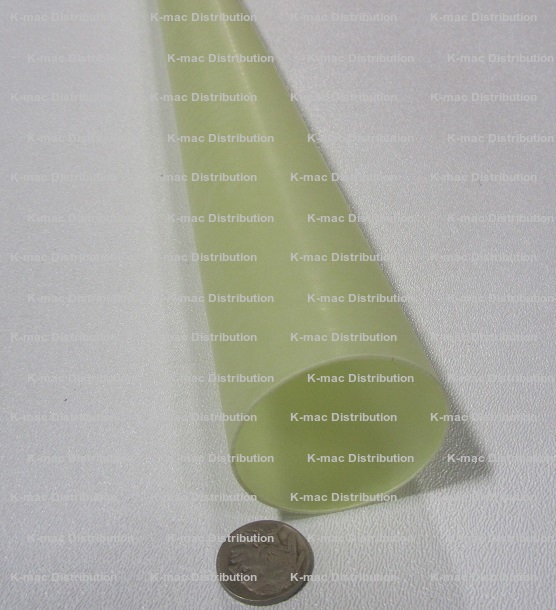

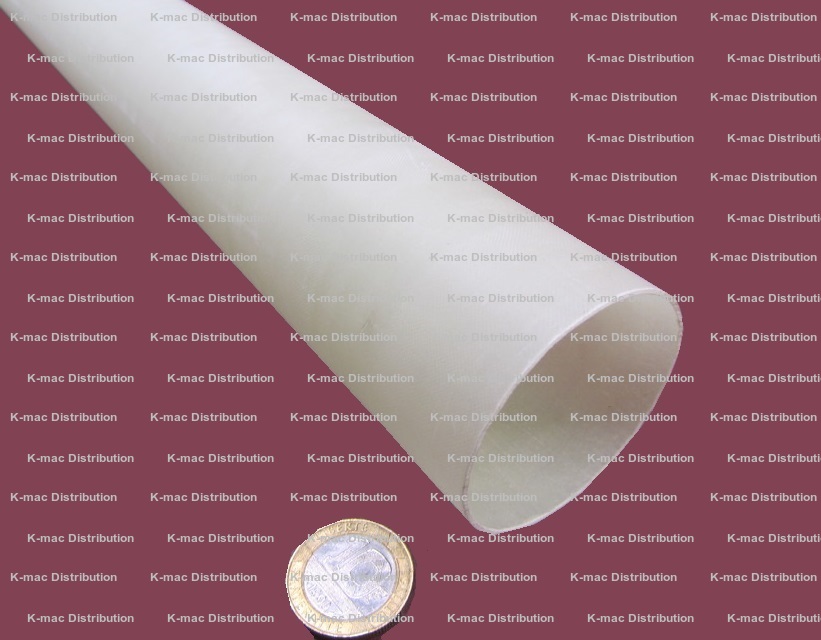

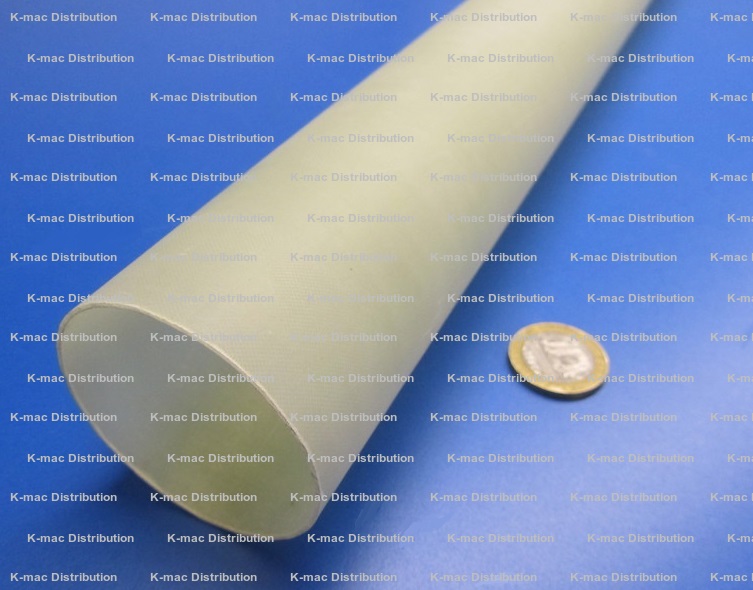

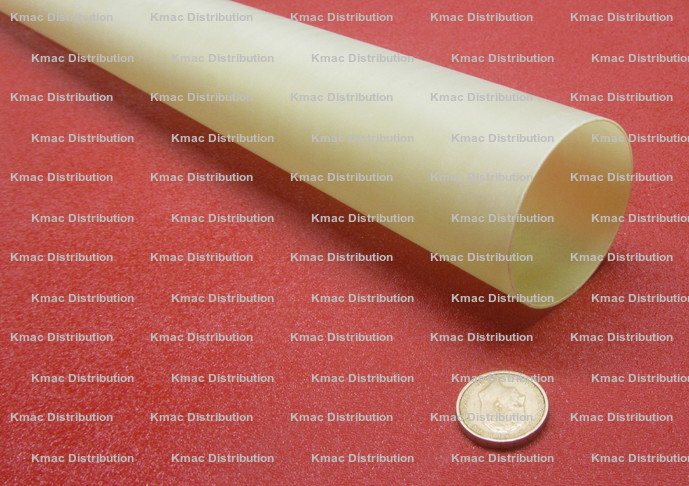

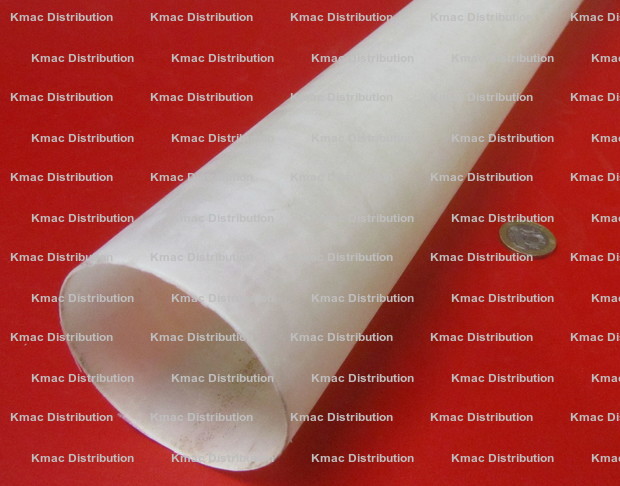

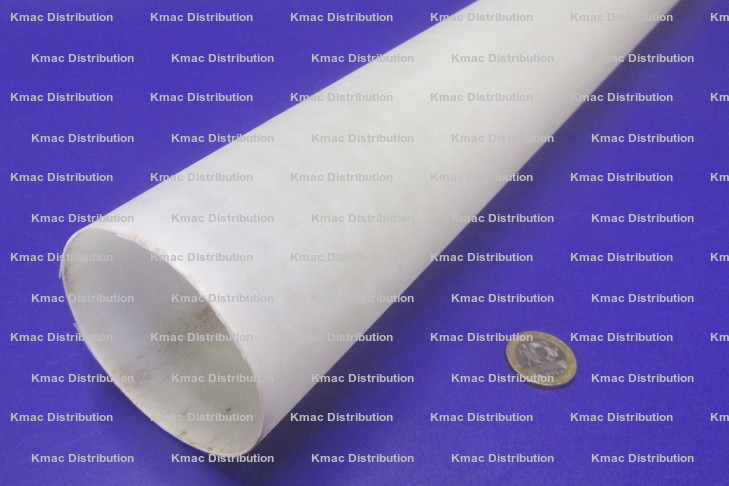

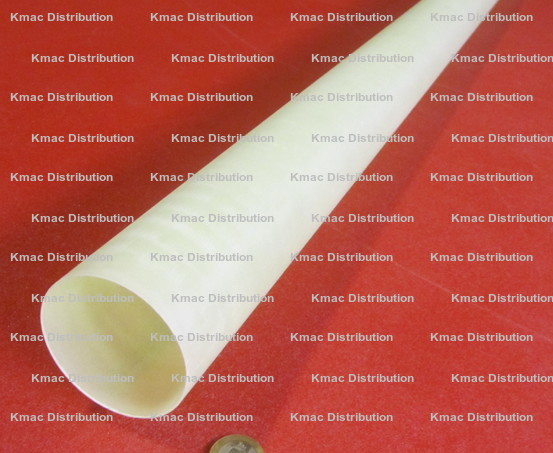

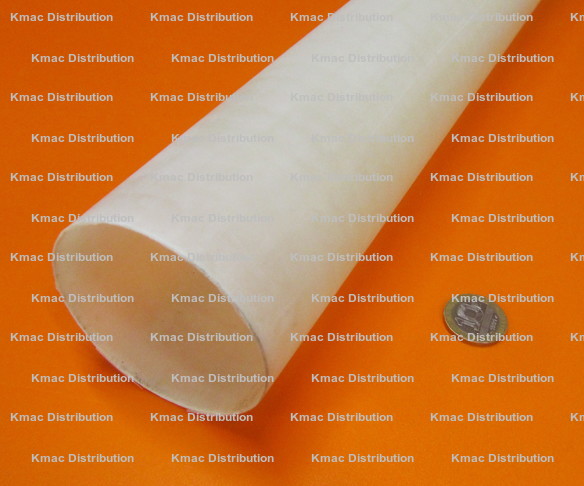

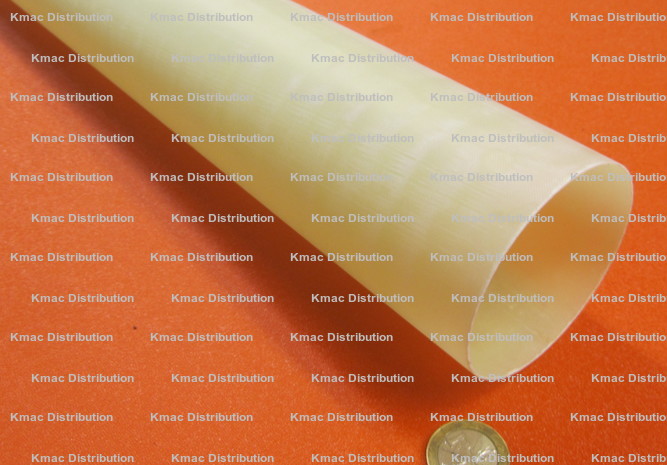

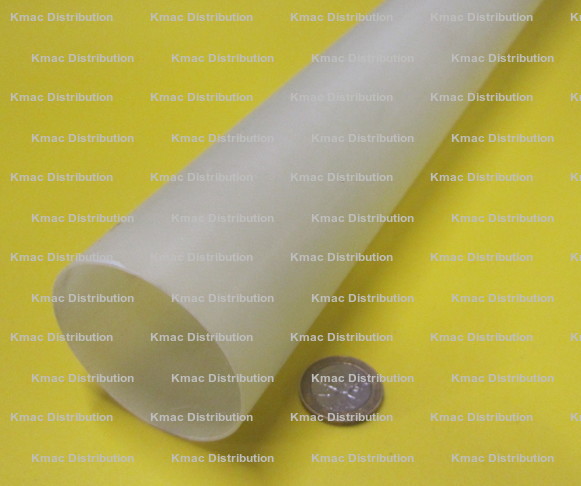

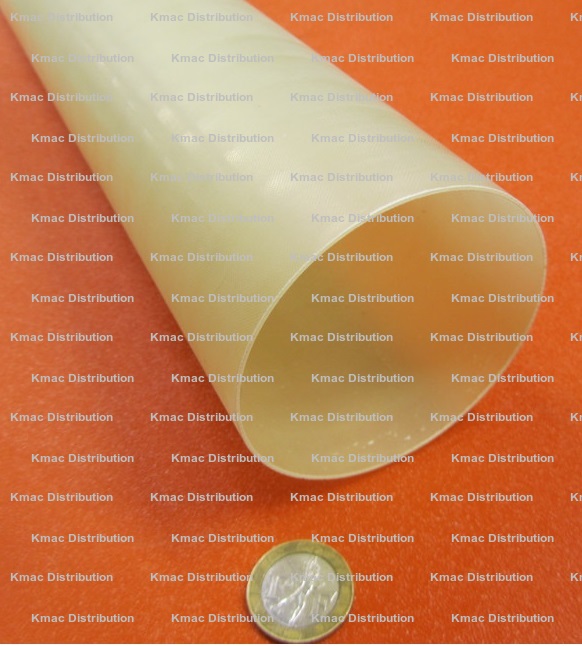

| G10 FR4 Tubes - .031" Thick **Minimum's Apply, Non Stocked Item, Pricing for Over 4.00" Diameter Wound Only |
|||||
| Part # | Outside Diameter (in.) | Inside Diameter (in.) | Price Per Foot | Minimum | Order Online |
|---|---|---|---|---|---|
| KM-1331 | 0.188 | 0.125 | $23.15 | 45 Feet | Add to Order |
| KM-1333 | 0.250 | 0.188 | $24.13 | 42 Feet | Add to Order |
| KM-3115V | 0.281 | 0.218 | $24.60 | 42 Feet | Add to Order |
| KM-1337 | 0.312 | 0.250 | $25.10 | 42 Feet | Add to Order |
| KM-1341 | 0.375 | 0.312 | $26.08 | 39 Feet | Add to Order |
| KM-1345 | 0.437 | 0.375 | $27.05 | 39 Feet | Add to Order |
| KM-1349 | 0.500 | 0.437 | $28.00 | 36 Feet | Add to Order |
| KM-1353 | 0.562 | 0.500 | $28.98 | 36 Feet | Add to Order |
| KM-1359 | 0.625 | 0.563 | $29.95 | 36 Feet | Add to Order |
| KM-1364 | 0.687 | 0.625 | $30.92 | 33 Feet | Add to Order |
| KM-1370 | 0.750 | 0.688 | $31.90 | 33 Feet | Add to Order |
| KM-1373 | 0.812 | 0.750 | $32.88 | 33 Feet | Add to Order |
| KM-1286V | 0.875 | 0.812 | $33.85 | 30 Feet | Add to Order |
| KM-1378 | 0.937 | 0.875 | $34.83 | 30 Feet | Add to Order |
| KM-5828 | 1.000 | 0.937 | $35.80 | 30 Feet | Add to Order |
| KM-5835 | 1.031 | 0.969 | $36.28 | 30 Feet | Add to Order |
| KM-5198 | 1.062 | 1.000 | $37.80 | 27 Feet | Add to Order |
| KM-5837 | 1.094 | 1.031 | $38.30 | 27 Feet | Add to Order |
| KM-5838 | 1.125 | 1.062 | $38.80 | 27 Feet | Add to Order |
| KM-5839 | 1.156 | 1.094 | $39.33 | 27 Feet | Add to Order |
| KM-5840 | 1.187 | 1.125 | $39.80 | 27 Feet | Add to Order |
| KM-5841 | 1.250 | 1.187 | $40.80 | 27 Feet | Add to Order |
| KM-5842 | 1.312 | 1.250 | $41.80 | 24 Feet | Add to Order |
| KM-5843 | 1.375 | 1.312 | $42.80 | 24 Feet | Add to Order |
| KM-5844 | 1.437 | 1.375 | $43.83 | 24 Feet | Add to Order |
| KM-5845 | 1.500 | 1.437 | $44.80 | 24 Feet | Add to Order |
| KM-5846 | 1.562 | 1.500 | $45.82 | 24 Feet | Add to Order |
| KM-5847 | 1.625 | 1.562 | $46.80 | 24 Feet | Add to Order |
| KM-5848 | 1.687 | 1.625 | $47.82 | 21 Feet | Add to Order |
| KM-5829 | 1.750 | 1.687 | $48.80 | 21 Feet | Add to Order |
| KM-5849 | 1.812 | 1.750 | $49.83 | 21 Feet | Add to Order |
| KM-5850 | 1.937 | 1.875 | $51.83 | 21 Feet | Add to Order |
| KM-5851 | 2.031 | 1.969 | $53.32 | 21 Feet | Add to Order |
| KM-5852 | 2.094 | 2.031 | $54.33 | 21 Feet | Add to Order |
| KM-5853 | 2.125 | 2.062 | $54.80 | 21 Feet | Add to Order |
| KM-5854 | 2.156 | 2.094 | $55.32 | 21 Feet | Add to Order |
| KM-5855 | 2.187 | 2.125 | $55.82 | 18 Feet | Add to Order |
| KM-5856 | 2.250 | 2.187 | $56.80 | 18 Feet | Add to Order |
| KM-5857 | 2.312 | 2.250 | $57.82 | 18 Feet | Add to Order |
| KM-4624 | 2.375 | 2.312 | $58.83 | 18 Feet | Add to Order |
| KM-5858 | 2.437 | 2.375 | $59.83 | 18 Feet | Add to Order |
| KM-5859 | 2.500 | 2.437 | $60.82 | 18 Feet | Add to Order |
| KM-5860 | 2.562 | 2.500 | $61.83 | 18 Feet | Add to Order |
| KM-5861 | 2.625 | 2.562 | $62.82 | 18 Feet | Add to Order |
| KM-5862 | 2.687 | 2.625 | $63.83 | 18 Feet | Add to Order |
| KM-5863 | 2.750 | 2.687 | $64.83 | 18 Feet | Add to Order |
| KM-5864 | 2.812 | 2.750 | $65.82 | 18 Feet | Add to Order |
| KM-5865 | 2.937 | 2.875 | $67.83 | 15 Feet | Add to Order |
| .031" Walls are not available in OD's = to or larger than 3.00" | |||||
| Rev. 04-23, 08-22, 04-22, 02-22 | |||||
| Phenolic Tube Tolerances | ||||
| ↓ Inside Diameter ↓ | ||||
| Outside Diameter | Turned OD Tolerance |
Steel Mandrel |
Built-up Mandrel |
|
| 0.125" to 0.749" | ±.005" | ±.003" | - | |
| 0.750" to 1.999" | ±.005" | ±.004" | - | |
| 2.000" to 4.000" | ±.008" | ±.006" | - | |
| 4.001" - 12.000" | ±.025" ** | ±.010" | - | |
| 12.001" - 18.000" | ±.030" ** | ±.030" | ±.060" | |
| 18.001" - 24.000" | ±.035" ** | ±.040" | ±.075" | |
| 24.001" - 48.000" | ±.040" ** | ±.060" | ±.090" | |
|
** Tubes over 8.000" OD are supplied as wound, which
** Tubes turned to the following OD tolerance
|
||||
